SonarQube

Robocop results can be imported into Sonar Qube with generic formatted result or with SARIF format.

Generic formatted result

Robocop generates a Sonar Qube generic formatted result with the SonarQube report. SonarQube report documentation can be found at SonarQube report.

You can enable it by adding sonarqube to a report list:

robocop check --reports sonarqube

[tool.robocop.lint]
reports = [
    "sonarqube"
]

By default, it will produce robocop_sonar_qube.json file in the directory where Robocop was executed.

You will need to attach this file in the CI/CD by defining analysis parameter sonar.externalIssuesReportPaths.

Since Robot Framework is not officially supported by SonarQube, you need to run a scanner manually and upload a report to SonarQube. A typical workflow in CI/CD would be running Robocop (while generating a report) and then uploading the report to SonarQube with the use of a scanner. Both SonarQube Cloud and on-premise support this.

When configuring the SonarQube project for the first time, chose manual upload for Python-based projects. It will generate a command to be used with pysonar. Most important for us are the token, name of the project and organisation. If you have already established a project, you can find the token in "My Account" (under user avatar) -> "Security".

After you install pysonar, run the following command to upload the report:

pysonar --sonar-sources=tests --sonar-token=<token> --sonar-project-key=<project_key> --sonar-organization=<organization> --sonar-external-issues-report-path=<project_path>

With the following placeholders replaced:

  • <token> - token from SonarQube
  • <project_key> - project key from SonarQube, i.e. 'your_repo'
  • <organization> - organization from SonarQube, i.e. 'your_company'
  • <project_path> - path to the report file, by default it is robocop_sonar_qube.json

Depending on your project, you might need to add additional parameters (such as project directory path, etc.)

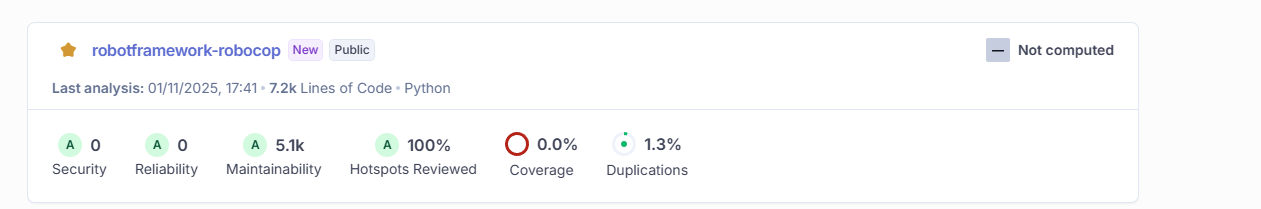

After a successful upload, you should see the project and its issues in SonarQube:

Project overview

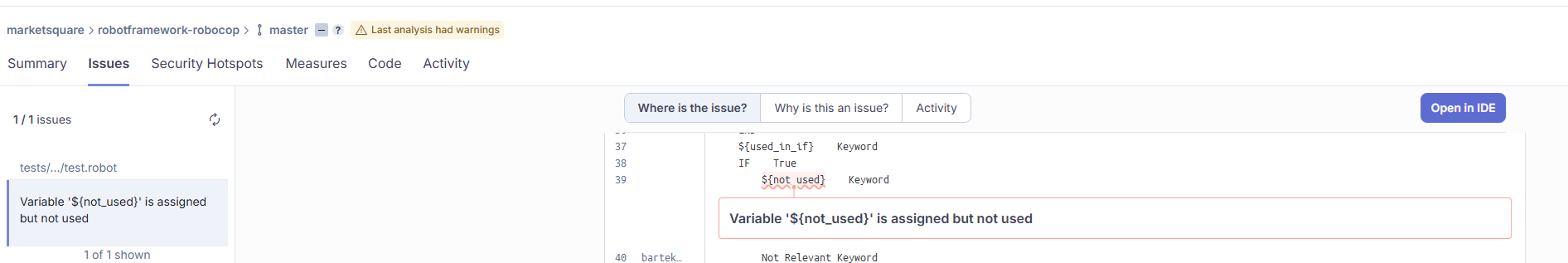

Issues should be linked with the source code and contain documentation:

Issue details

SARIF

SARIF is also supported. Robocop generates a SARIF file with the SARIF report. See the SonarQube documentation for more information on how to import it.
